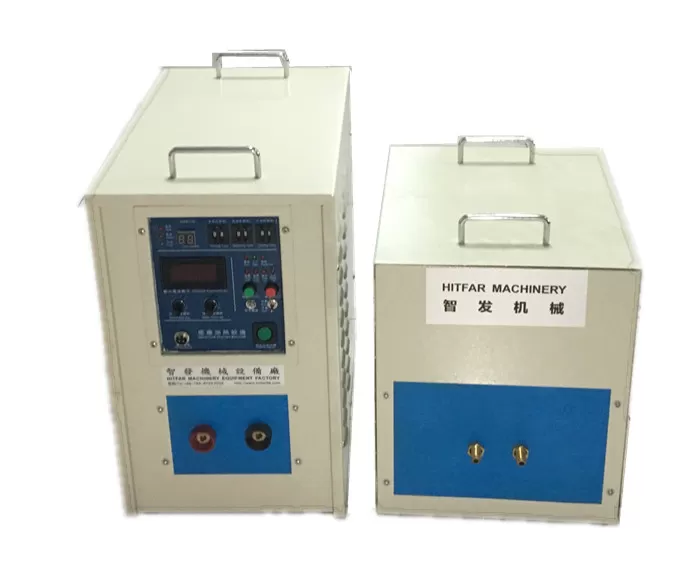

40KW High Frequency Induction Heating Hardening Machine (Water-cooled Type)

40KW High Frequency Induction Heating Hardening Machine (Water-cooled Type)

Descriptions

Model No.: ZG-HF40

Input Power: 380V-3P (415V/440V/480V-3P can be made)

Output Working Power: 40kw adjustable

Main Function: all kinds of small metal parts heating, welding, surface or partial hardening, tempering, annealing, hot forging

Main Advantage: Rapid Heating Speed, Precise Temperature Control, Versatile Applications and Compact Design

Main Components: Induction Heating Controller + Heating Station (transformer) + Induction Coil

Inquire Now Next Product

APPLICATION

40KW High Frequency Induction Heating Hardening Machine from Hitfar utilizes high frequency induction heating technology to quickly and precisely heat your materials to the desired temperature, making it an ideal choice for a wide range of industrial applications.

1, Heat treatment: heat treatment including hardening, annealing, tempering, and heating thoroughly. Various metal parts can be heated partially or whole part by 40KW High Frequency Induction Heating Hardening Machine.

2, Hot forming: whole part forging heating, partially forging, heating for hot upsetting and hot rolling.

3, Welding or brazing: various metal products brazing, blades and tools welding, diamond blade teeth brazing, steel and copper pipes silver or copper soldering.

4, Melting or smelting for 1-5kgs gold/silver/copper, and smaller amounts of iron, steel or aluminium.

5, 40KW High Frequency Induction Heating Hardening Machine can also be used for many other applications like semiconductor welding, other products hot fitting, bottle mouth heat sealing, Toothpaste skin heat sealing, powder coating and metal implanted plastic and many other heating too.

40KW High Frequency Induction Heating Hardening Machine (Water-cooled Type)

MAIN FEATURES

(1) 40KW High Frequency Induction Heating Hardening Machine with a high frequency from 30Khz to 100Khz, which can heating the metal parts partially or whole with a very quick speed.

(2) 40KW High Frequency Induction Heating Hardening Machine with a loading duty of 100% is a very proper induction heater can be used on the continuously working on the production line.

(3) We can adjust the the heating power on the control panel according to the actual heating temperature and speed.

(4) The input power can be made of 3 phase, 220V/380V/415V/440V/480V in accordance to different requests from various t countries and regions.

(5) The total net weight is only around 65Kgs, very easy for moving around and transportation.

(6) The extra controlling can be connected to PLC by input voltage signal of 1-5V.

If you are looking for High Frequency Induction Heater or water cooled type induction heating machine from trusted supplier, welcome to contact us for detailed information!

TECHNICAL PARAMETER

-1-	INPUT POWER:	220V-1P or 380V-3P, 50/60Hz
-2-	WORKING VOLTAGE RANGE:	Single phase of 180V~240V or 3phases of 320V~ 420V
-3-	OSCILATION FREQUENCY:	30-100KHZ
-4-	HEATING TIME SETTING:	1-999S OR N
-5-	RETAIN TIME SETTING:	1-999S OR N
-6-	MAXI WORKING. POWER:	5~25KW adjustable
-7-	LOADING:	95%
-8-	COOLING WATER:	4L/min(0.2mpa)
-9-	COOLING WATER TEMPERATURE:	5-50℃
-10-	WORKPIECE:	BRAZING/SOLDERING/HEATING
-11-	APPLICATION:	HEATING/BRAZING/SOLDERING/WELDING
-12-	GROSS WEIGHT:(INCLUDING WOODEN CASE)	Unit Type:30KGSplit Type:50KGS
-13-	PACKAGE DIMENSION:	Unit Type:600350550mm3Split Type:600700550mm3
