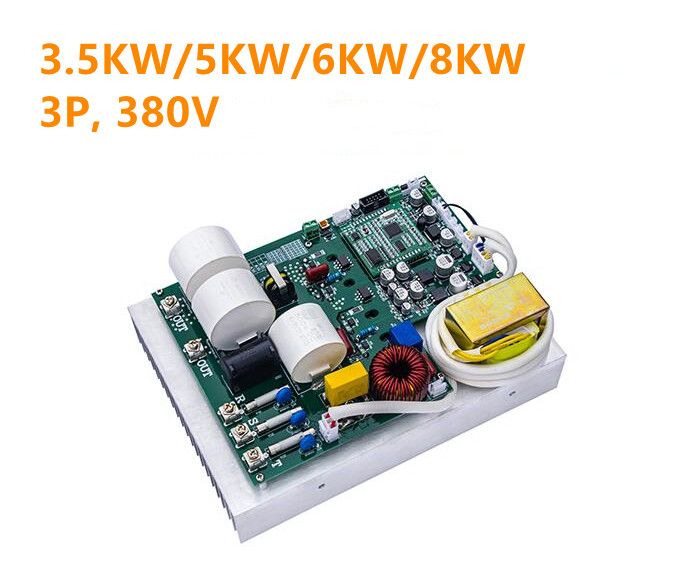

Induction Heater Main Circuit Board
Descriptions
Model No.: ZG-EH3.5-1B, ZG-EH05-1B, ZG-EH06-B, ZG-EH08-B (half bridge)
Rated voltage frequency: 380V-3P, 50Hz/60Hz (415V/440V/480V can be customized)
Rated power: 3.5kw, 5kW, 6KW, 8KW

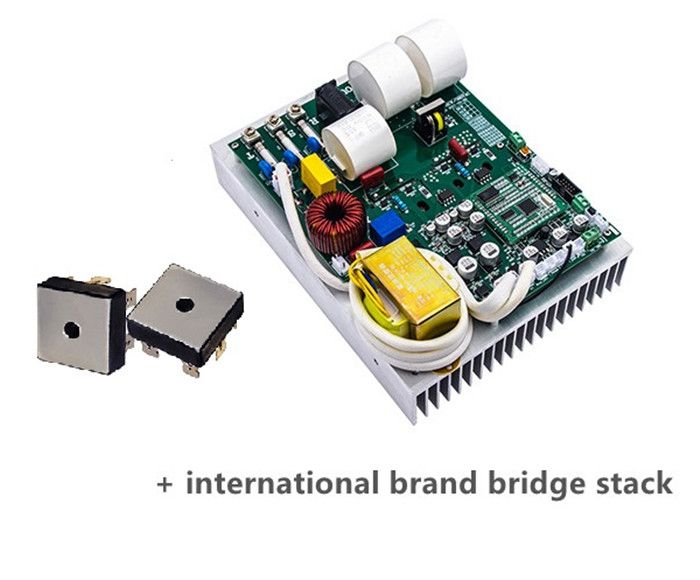

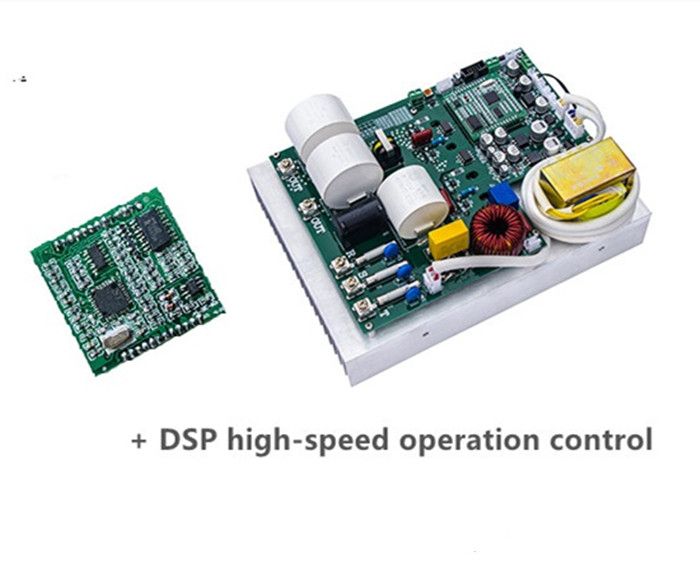

Main Components: Mother Board + Aluminium Sink + Display etc. It equals to a set of induction heater, just without installed inside a steel box + a cooling fan!
Basic Structure of Electromagnetic Induction Heating System:
① Induction Heater: also called electromagnetic induction heater, induction heating main control, induction heating main circuit control, etc.
② Induction Heating Coil: also called induction coil/heating coil
③ Temperature Control: can be installed on the induction heater box
④ External Control: PLC etc.
| NO. | Model NO.: | ZG-EH3.5-1 | ZG-EH05-1 | ZG-EH06 | ZG-EH08 |
| 1 | Rated Power: | 3.5KW | 5KW | 6KW | 8KW |
| 2 | Rated Input Voltage: | AC380V-3P | AC 380V-3P | AC 380V-3P | AC 380V-3P |
| 3 | Input Current: | 5-6A | 8A | 7.5A | 12A |
| 4 | Working oscillation frequency: | 3-40KHZ | 3-40KHZ | 3-40KHZ | 3-40KHZ |
| 5 | Loading Inductance: | 150-280uH | 150-280uH | 150-250uH | 150-250uH |
| 6 | Coil wire request: | 6mm2 copper core*18-45 meters long | 8mm2 copper core*18-45 meters long | 10mm2 copper core*18-45 meters long | 16mm2 copper core*18-45 meters long |
| 7 | Working Voltage Range: | 330V～420V | 330V～420V | 330V～420V | 330V～420V |
| 8 | Working Environment Temperature: | -20℃～50℃ | -20℃～50℃ | -20℃～50℃ | -20℃～50℃ |
| 9 | Heating Exchange Rate: | ≤97% | ≤97% | ≤97% | ≤97% |
| 10 | Current & Voltage Working Condition: | Constantly | Constantly | Constantly | Constantly |
| 11 | Loading | ≥95% | ≥95% | ≥95% | ≥95% |
| 12 | IGBT/MOSFET Temp. Protection: | 75℃ | 75℃ | 75℃ | 75℃ |
| 13 | Work mode: | automatically working, constantly heating | automatically working, constantly heating | automatically working, constantly heating | automatically working, constantly heating |
| 14 | The waves rushed to protect: | 1500V | 1500V | 1500V | 1500V |
| 15 | Anti-clutter: | 4000V | 4000V | 4000V | 4000V |
