Induction Water Boiler for Warming

Induction Water Boiler for Warming

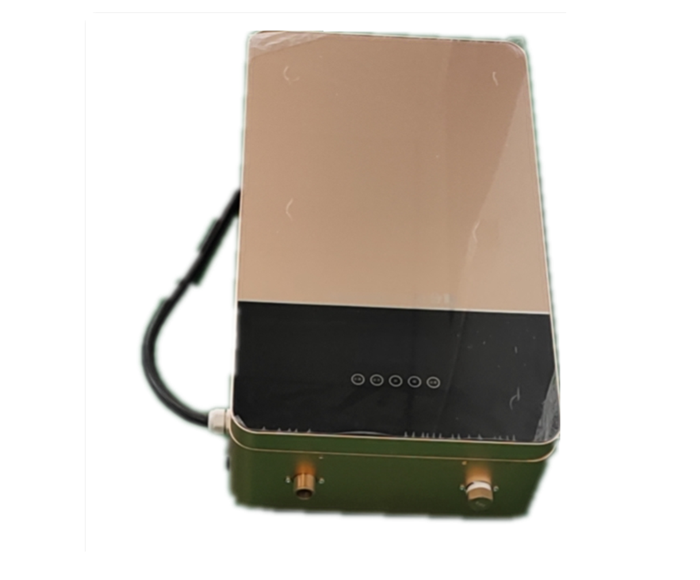

6KW/8KW/10KW/15KW 220V-1P Wall-mounted Type Electromagnetic Induction Heating Water Boiler for Warming
6KW/8KW/10KW/15KW 220V-1P Wall-mounted Type Electromagnetic Induction Heating Water Boiler for Warming
6KW/8KW/10KW/15KW 220V-1P Wall-mounted Type Electromagnetic Induction Heating Water Boiler for Warming

6KW/8KW/10KW/15KW 220V-1P Wall-mounted Type Electromagnetic Induction Heating Water Boiler for Warming

Descriptions

Model No.: ZG-EH06HB-H, ZG-EH08HB-H, ZG-EH10HB-H, ZG-EH15HB-H

Rated Power: 6kw~15kw

Working Principle: Electromagnetic Heating Water to Hot and Circulating underfloor pipes or wall-mounted pipes for warming the room space temperature in a very comfortable environment.

Main Meatures: PLC and touch screen control, water and electricity totally separated with no dangerous at all.

Extra Function: Induction Heating Water Boiler can be connect to Wi-Fi remote control

APPLICATION

The induction boiler provides instant hot water. Magnetic induction water heater requires no chimney, is easy to install, compact in size, operates at 100% efficiency, and runs quietly. It is a popular choice for home or hotel heating needs.

MAIN FEATURES

Magnetic Induction Water Heater

Magnetic Induction Water Heater Advantages

1. High efficiency and energy saving: The thermal efficiency is over 90%. Under the same conditions, induction heating can save more than 30% of electricity than the resistance heating method, and some even save 80% of electricity. The preheating time can be shortened.

2. Reliable operation: Multiple closed-loop intelligent control systems and perfect protection systems ensure long-term safe and reliable operation of the equipment.

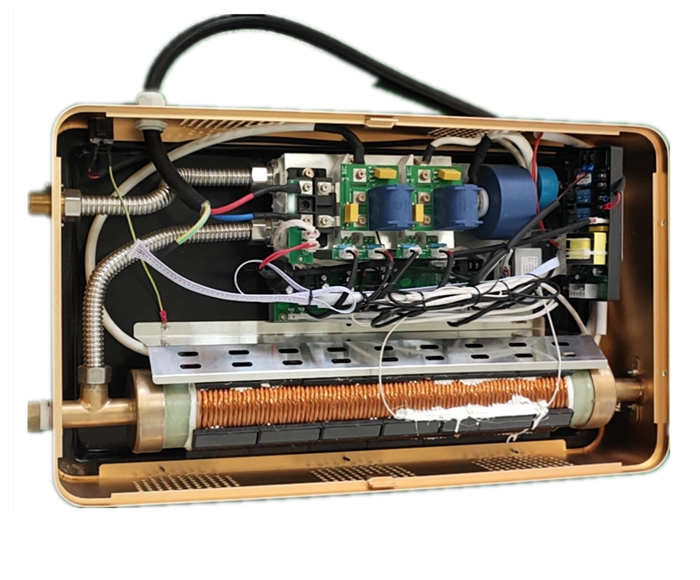

3. Reduce production costs: The heating part adopts a cable structure. The heating cable itself does not generate heat and has a long service life. Magnetic induction hot water heater avoids the need for frequent maintenance and periodic replacement of the heating coil for resistance heating, and there is basically no maintenance cost in the later period.

4. Improve working environment: The heating part has less heat dissipation, and the surface can be touched by hand, which improves the environmental conditions at the production site.

5. Intelligent multi-temperature zone control: The electromagnetic heating economizer uses a LCD screen to display the real-time temperature and set temperature range. The built-in chip can intelligently control the heating speed and output power, and can be flexibly adjusted according to the actual situation. Ultra-high temperature heating electromagnetic heating coils have been applied to manufacturers of plastic products, plastic films, pipes, profiles and similar industries, and have achieved good results. They have the characteristics of convenient installation and strong interchangeability. Better economic benefits than ever.


Instructions of How to Set the Remote Control:

In the technological era of smart home appliances, remote intelligent remote control is one of indispensable functions to Electromagnetic Induction Heating Water Boiler too. Let me explain how to set up it?

◆ Firstly, find the QR code in the instruction book of electromagnetic water boiler for warming and download the relevant APP and then follow up the steps to connect remotely control to your cellphone through WIFI.

◆ The WIFI remote control is one method. It can also be controlled remotely via GPRS. No matter where you are, you can always monitor the running status of the Electromagnetic Induction Heating Water Boiler and control the warmth of the room at will.

◆ Emagnetic induction water heater is heating much faster and more convenient than the old one which using coal as the heating elements. You only need to set the time and temperature in 24 hours mode.

◆ There're 6 different time periods and different water temperature, etc can be set. In working days there's usually no one at home after 8 o'clock in the morning. In this case, we can set the electromagnetic heating boiler to automatically turn off at 8 o'clock, and set the electromagnetic heating furnace to automatically turn on when I go home at 8 o'clock in the evening.

TECHNICAL PARAMETER

Magnetic Induction Water Heater


Basic Technical Parameter for 220V-1P Household-type, wall-mounted induction water heater/boiler

ModelUnitZG-EH06-HBZG-EH08-HBZG-EH10-HBZG-EH15-HB
Rated PowerkW6kW8kW10kW15kW
Rated Input CurrentA27364567.5
Frequency of Input PowerV/Hz220/50220/50220/50220/50
Input Live Wiremm2≧6≧10≧10≧16
Electrical Protection LevelIP33333333
Heat Exchange Rate%≧97≧97≧97≧97
Shell Heat Dissipation%≦2≦2≦2≦2
Maxi. Capacity of Hot WaterL111148185278
Maxi. Water PressureMpa0.20.20.20.2
Mini Flow Volume of PumpL/min12162030
Expansion Tank CapacityL681012
Maxi Temp. Of Hot Water85858585
Protection Temp. Of  Water5555
Output Hot Water ( 65℃)L/min22.63.254.87
Dimension (H*W*T)mm730*470*180730*470*180730*470*180730*470*180
Input & Output PipeDN25252525
Warming Aream260-8080-100100-150150-180
Warming Spacem3192-240250-320320-400400-480
Electricity MeterA40A,1P60A,1P60A,1P80A,1P
