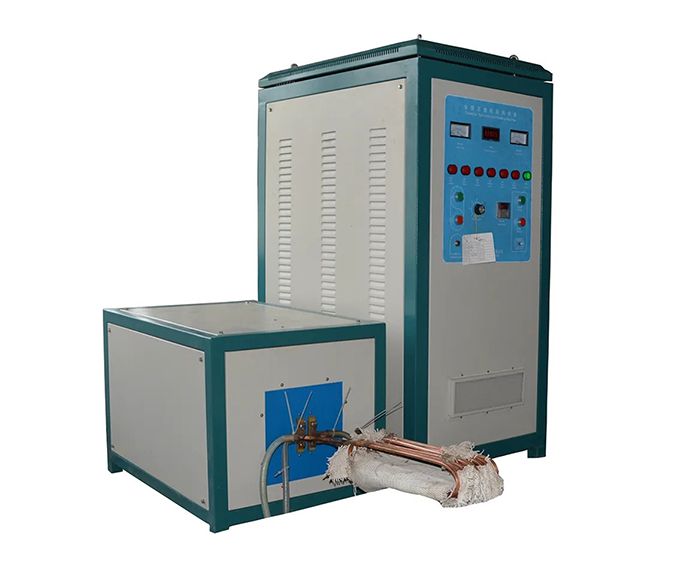

ZG-SF Series 16KW to 320KW /6-50KHZ Super-Audio High Frequency Solid State Induction Heating Quenching Machine (Water Cooling)

ZG-SF Series 16KW to 320KW /6-50KHZ Super-Audio High Frequency Solid State Induction Heating Quenching Machine (Water Cooling)

Descriptions

Model No.: ZG-SF16, ZG-SF30, ZG-SF40, ZG-SF50, ZG-SF60, ZG-SF80, ZG-SF120, ZG-SF160, ZG-SF250, ZG-SF320

Rated Power: 16kw, 30kw, 40kw, 50kw, 60kw, 80kw, 120kw, 160kw, 250kw, 320kw

Main Function: Diathermy forging heating, hot upsetting and hot rolling heating for various metal parts less than diameter 800mm.

Main Advantage: Oscillation Frequency low to 6-50Khz, with transformer no output high voltage, can heat bigger diameter metal parts than high frequency induction heating machine.

Main Components: Solid State Induction Heating Controller + Transformer + coil

Inquire Now

APPLICATION

Crafted with precision and innovation, this solid state induction heating machine combines Siemens IGBT technology and German inverter expertise to deliver unmatched performance and reliability.

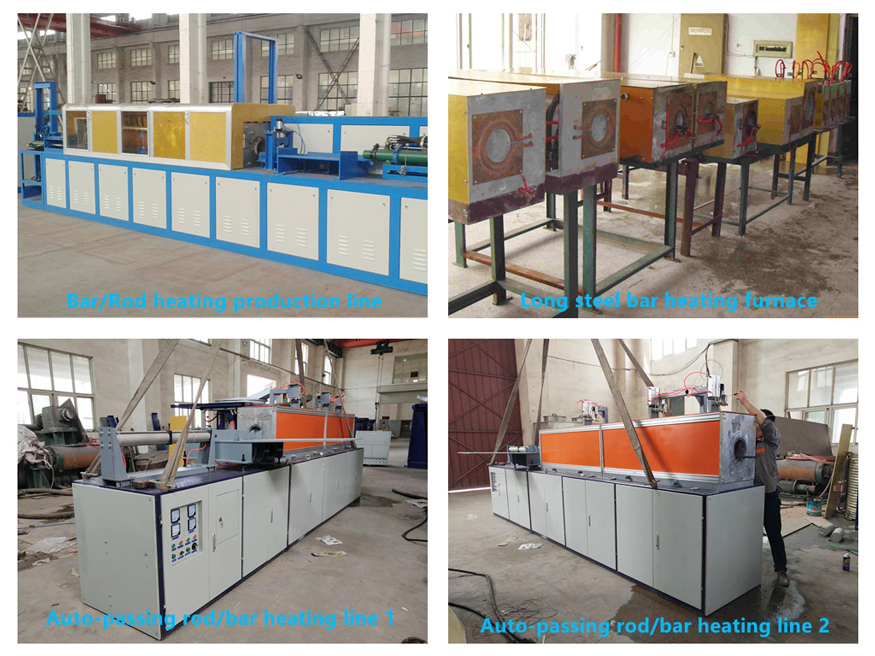

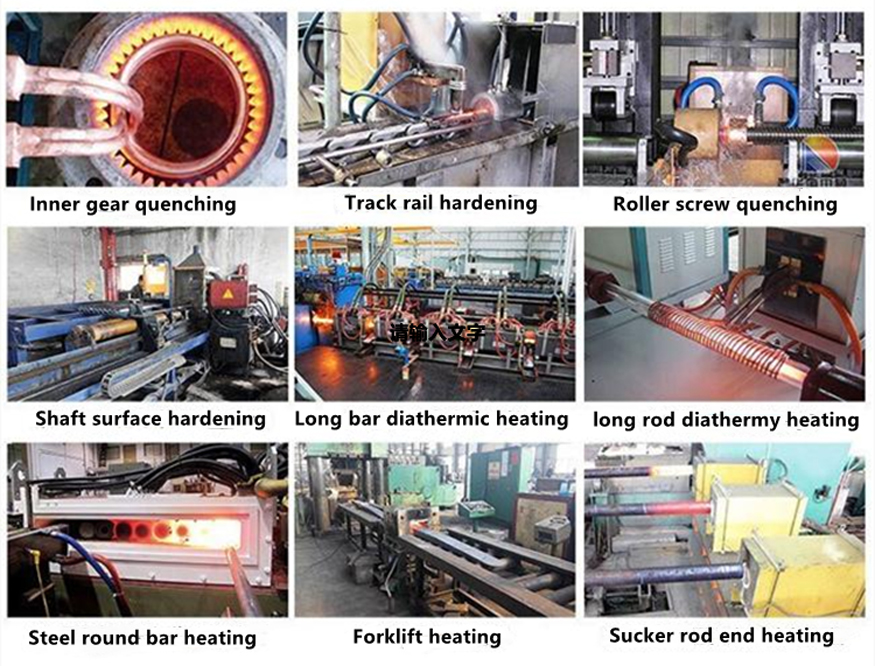

1. High frequency heating for hot upsetting of various high-strength bolts and nuts;

2. High frequency quenching of various gears, sprockets and shafts;

3. High frequency quenching of various axle shafts, leaf springs, shift forks, valves, rocker arms, ball studs and other auto parts.

4. High frequency quenching of various internal combustion engine parts and deceleration surface parts.

5. High frequency hardening of various pliers, scissors, axes, hammers and other hand tools.

6. High frequency hardening for all kinds of picks, drill bits, drill pipes, coal drill bits, air drill bits and other mines.

7. High frequency surface hardening for all kinds of bars, rods, sticks.

8. Diathermy forging heating of bars with a diameter of less than 800mm.

9. Hot upsetting and hot rolling of mechanical spare parts, hardware tools and straight shank twist drills.

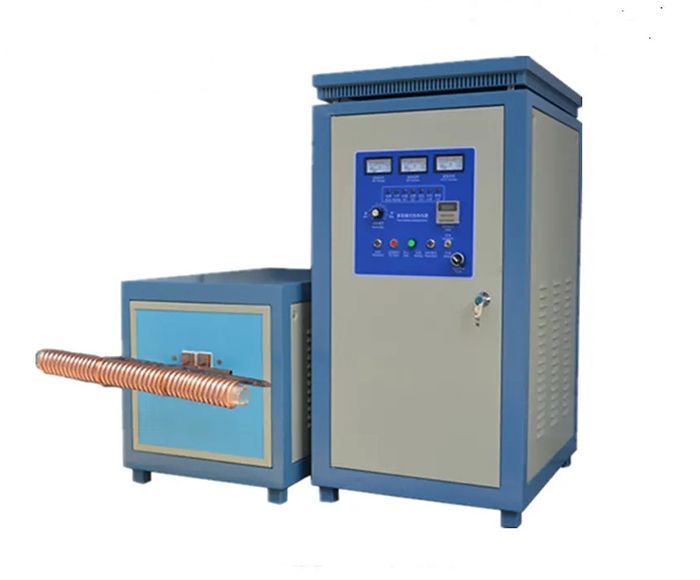

solid state induction heating

MAIN FEATURES

1. Adopt Siemens IGBT module as power driving part and unique inverter technology from Germany.

2. 100% load rate, can be working 24-hour per day even in maximum power working mode.

3. Automatic control type: heating time, heating power, holding time, holding power and cooling time can be adjusted.

4. Simple operation steps for any new worker can be learned in several minutes.

5. Simple installation, just connecting the 380V three-phase power supply, water inlet and outlet, and it can be completed in a few minutes.

6. Water cooled induction heater occupies a very small area, the operation is simple, and it can be learned in a few minutes.

7. Especially safe, the output voltage is lower than 36V, avoiding the danger of high voltage electric shock.

8. Heating efficiency is as high as 90% or more, saving energy.

9. Complete automatic protection functions such as over-current, over-voltage, over-temperature, water shortage, and lack of water, and is equipped with a fault self-diagnosis alarm system.

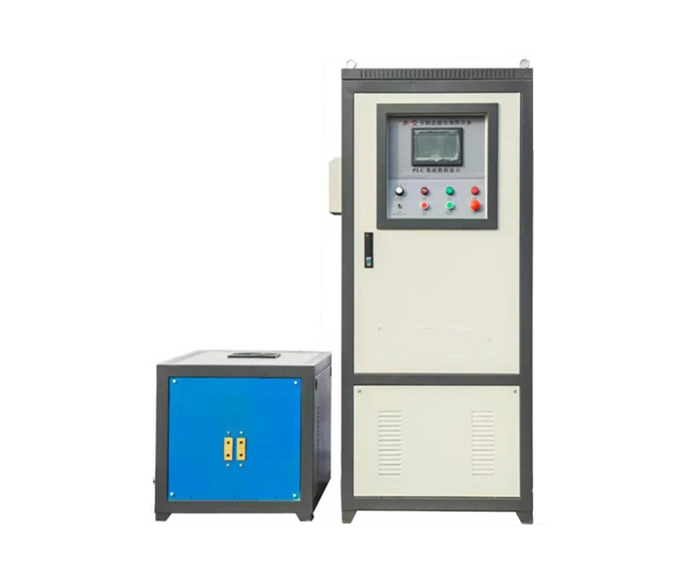

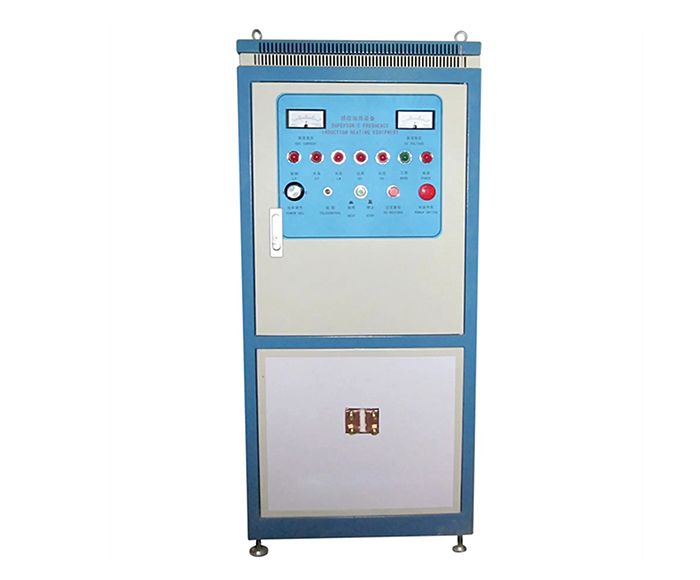

Solid State Induction Heating Quenching Machine

TECHNICAL PARAMETER

Model No.	Maxi. Output Power	Oscillating Frequency	Cooling Water Request	Main Power Controller		Transformer
Model No.	Maxi. Output Power	Oscillating Frequency	Cooling Water Request	Dimension(mm)	N. W.(KGS)	Dimension(mm)	G. W.(KGS)
ZG-SF16	16 KW	15-50 KHZ	>5～<50℃≥0.3MPA	580×280×510	45
ZG-SF30	30 KW	15-50 KHZ		580×280×510	45
ZG-SF40	40 KW	15-50 KHZ		460×360×630	60	320×320×310	40
ZG-SF50	50 KW	15-40 KHZ		600×450×790	65	400×350×300	43
ZG-SF60	60 KW	15-35 KHZ		600×500×860	70	400×370×370	60
ZG-SF80	80 KW	15-35 KHZ	>5～<50℃≥0.5MPA	1100×650×520	80	500×800×580	110
ZG-SF120	120 KW	15-35 KHZ		1100×650×520	80	500×800×580	120
ZG-SF160	160 KW	15-35 KHZ		1100×650×520	85	500×800×580	130
ZG-SF250	250 KW	8-15 KHZ		1050×650×1150	130	1150×680×760	170
ZG-HF-320	320 KW	6-15 KHZ		850×650×1800	220	1150×680×760	170

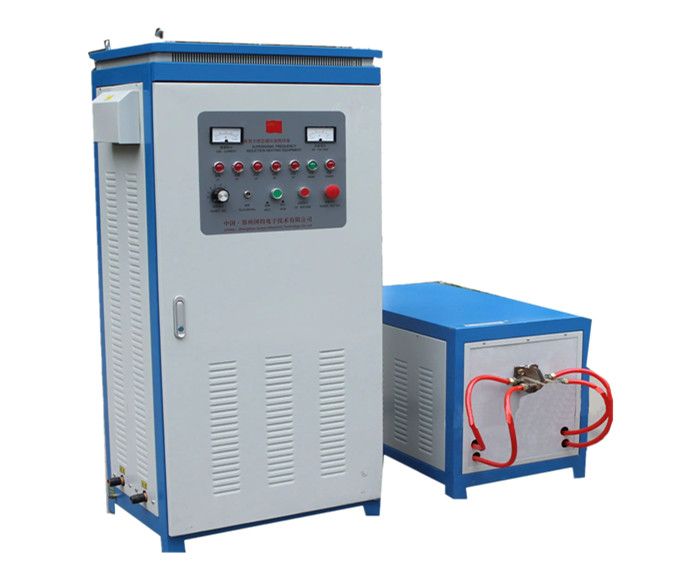

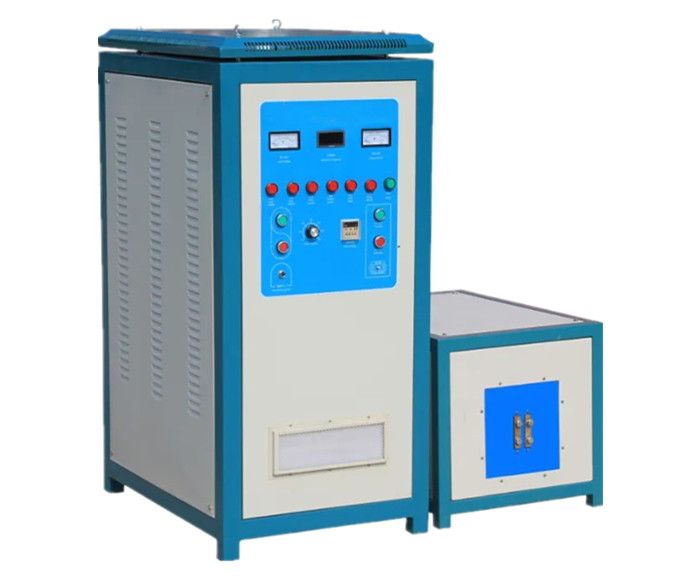

Solid State Induction Heating Quenching Machine
